9 5/8" IADC 537 TCI tricone rock bit from China manufacturer - Hejian Solidkey Petroleum Machinery Co.,Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 9 5/8" IADC 537

Production Capacity: 100pcs/mon

Delivery Date: depend on your order

Brand Name: solidkey

Minerals & Metallurgy: Mining Machinery

Means of Transport: Ocean

Packing: Plywood case

Application: Coal

Machine Type: Drilling Equipment

tricone bit: drilling bit

tricone rotary bit
1>ISO 9001:2008 & API spec7-1
2>Timely deliveryand after-sale service
3>Hardfaced head bearing surface

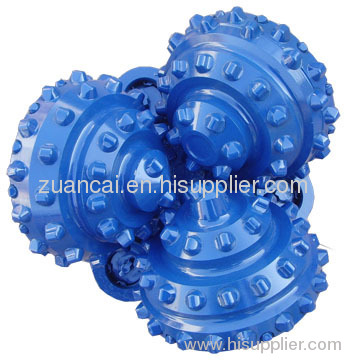

9 5/8" IADC 537 TCI tricone rock bit

Basic Info.

Model NO.: 9 5/8" IADC 537
Certificate: ISO
Type: Petroleum Drilling Tool & Accessory
Usage: Well Drilling Machinery
Export Markets: Global

Product Description

Sizes from 3 7/8" to 26"
Covers almost all IADC codes.
Stocks adequate&timely delivery
Good quality and after-sale service
30 years experience in drill equipment

Please specify the following items as many as possible in enquiry:
Bit diameter
IADC code
Bearing type
Drilling formation
Drillig depth

Size 9 5/8" (244.4mm)
IADC 537
Bearing Type Elastomer-sealed journal bearing
Thread Connection 6 5/8 reg pin
WOB(KN/mm) 0.45-1.0
RPM(r/min) 120-50
Applicable Formations Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc.
Circulation system Mud pump

Model NO.:	9 5/8" IADC 537
Certificate:	ISO
Type:	Petroleum Drilling Tool & Accessory
Usage:	Well Drilling Machinery
Export Markets:	Global

2 Photos of Profile & Details:

3 Packing infomation:

4 Payment terms:

T/T and L/C are acceptable.

5 Lead Time for MOQ:

Within 3 days after deposit or L/C opened.

6 You may interest in below items:

Available sizes:

60mm,65mm,76mm,93mm,95mm,98mm(3 7/8"),101.6mm,114mm,118mm,120mm,127mm(5")

130.1mm(5 1/8"),133.3mm(5 1/4"),139.7mm(5 1/2"),142.8mm(5 5/8"),149.2mm(5 7/8")

152.4mm(6"),155.5mm(6 1/8"),158.7mm(6 1/4"),161.9mm(6 3/8"),165.1mm(6 1/2”)

190.5mm(7 1/2”),193.6mm(7 5/8”),200.0mm(7 7/8”)

212.7mm(8 3/8”),215.9mm(8 1/2”),222.2mm8 3/4”)

241.3(9 1/2”),244.4(9 5/8”),250.8(9 7/8”)

269.8(10 5/8”),295.3(11 5/8”)

311.1(12 1/4”),346.0 (13 5/8”),349.2(13 3/4”)

374.6(14 3/4”)

381(15”),393.7(15 1/2”),406.4(16”)

444.5(17 1/2”),508(20”),558(22”),609.6(24”)

660.4(26”)

Available models:

Steel tooth (IADC)	111, 121,131 117,124,126,127,136,137 211,311 216,217, 227
TCI (IADC)	415,435, 417,437 515,525,535,545, 517,527,537,547 615,625,635,,617,627,637,737 512,522,532,612,622,632,732

7 ISO certification

FAQ(Frequently Asked Questions)

1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. To West of American 20 days.

3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
